Selecting a curtain wall system is not a decision that should be based solely on facade appearance or initial investment cost. The building’s intended use, height, architectural design, facade orientations, glass specifications, wind effects, energy targets, fire safety, maintenance requirements and installation schedule must be evaluated together.
A curtain wall system that is unsuitable for the project may lead to installation difficulties, increased costs, air and water leakage, excessive heat gain, maintenance problems and an undesirable facade appearance. System selection should therefore be based on architectural and technical data from the earliest stages of the project.
This guide explains the main differences between capped curtain walls, structural silicone curtain walls, semi-capped facades, panel glass facades and other facade solutions. It also covers the key selection criteria, factors affecting cost and the design and installation process.
Based in Istanbul, Optimal Mimarlık provides solutions for the design, specification, fabrication and installation of curtain wall systems. Every project in Istanbul is evaluated individually according to its location, architectural characteristics and technical requirements.
What Is a Curtain Wall?
A curtain wall is a lightweight exterior envelope attached to the outside of a building’s primary structural system. It transfers its own weight and environmental loads to the building through its connection points. A curtain wall does not carry the structural loads supported by the building’s floors, columns and beams.
The system may consist of aluminum supporting profiles, glass, opaque panels, insulation materials, gaskets, fixing components, anchors, joints and water drainage details. All these components must be designed to work together as an integrated system.
Where Are Curtain Wall Systems Used?
Curtain wall systems can be used in offices, high-rise commercial buildings, hotels, hospitals, schools, cultural centers, retail stores, showrooms, factory administration buildings and mixed-use developments.
System selection should not be made independently of the building type. For example, the daylight and solar-control requirements of an office building may differ considerably from the transparency and visibility requirements of a showroom.
Main Types of Curtain Wall Systems
1. Capped Curtain Wall System
In a capped curtain wall system, glass panels are installed onto vertical and horizontal aluminum supporting profiles. Pressure plates and external caps remain visible on the outside of the glass.
Different horizontal or vertical effects can be created by changing the color, form and direction of the caps. Capped systems can be considered for projects requiring a controlled and orderly facade appearance with clearly expressed system details.
2. Structural Silicone Curtain Wall System
In a structural silicone curtain wall, glass panels are connected to the supporting structure using special cassettes and system-compatible structural bonding solutions. When viewed from the exterior, the glass surfaces and joints between the glass panels are visible instead of aluminum caps.
This system can be preferred when a more continuous glass appearance is required. Glass dimensions, bonding details, the supporting structure and installation conditions must be determined specifically for each project.
3. Semi-Capped Curtain Wall System
In a semi-capped system, an aluminum cap may be used in one direction of the glass joints and a silicone joint in the other. This makes it possible to emphasize either horizontal or vertical lines across the facade.
The cap direction and joint arrangement are determined according to the architectural design. A semi-capped curtain wall combines the visual characteristics of capped and structural silicone facade systems.
4. Panel Glass Curtain Wall System
In a panel glass curtain wall system, facade sections are prepared as large modules under controlled factory conditions and subsequently installed onto the building at the construction site.
This method may be considered when the building height, facade module arrangement, site conditions, transportation opportunities and installation schedule are suitable. The system requires detailed engineering and installation planning.
5. Spider Glass Facade System
In spider glass facade systems, glass panels are connected to the supporting structure using point-fixed components. These systems may be used at entrances, atriums, storefronts and special areas where a high level of transparency is required.
A spider glass facade is not a standard solution for every project. Glass specifications, point-fixing components and the supporting structure must be calculated according to the specific project conditions.
6. Other Curtain Wall Solutions
A glass curtain wall can be combined with aluminum composite panels, perforated panels, mesh panels, ceramic, Sinterflex, compact laminate or other facade cladding materials within the same project.

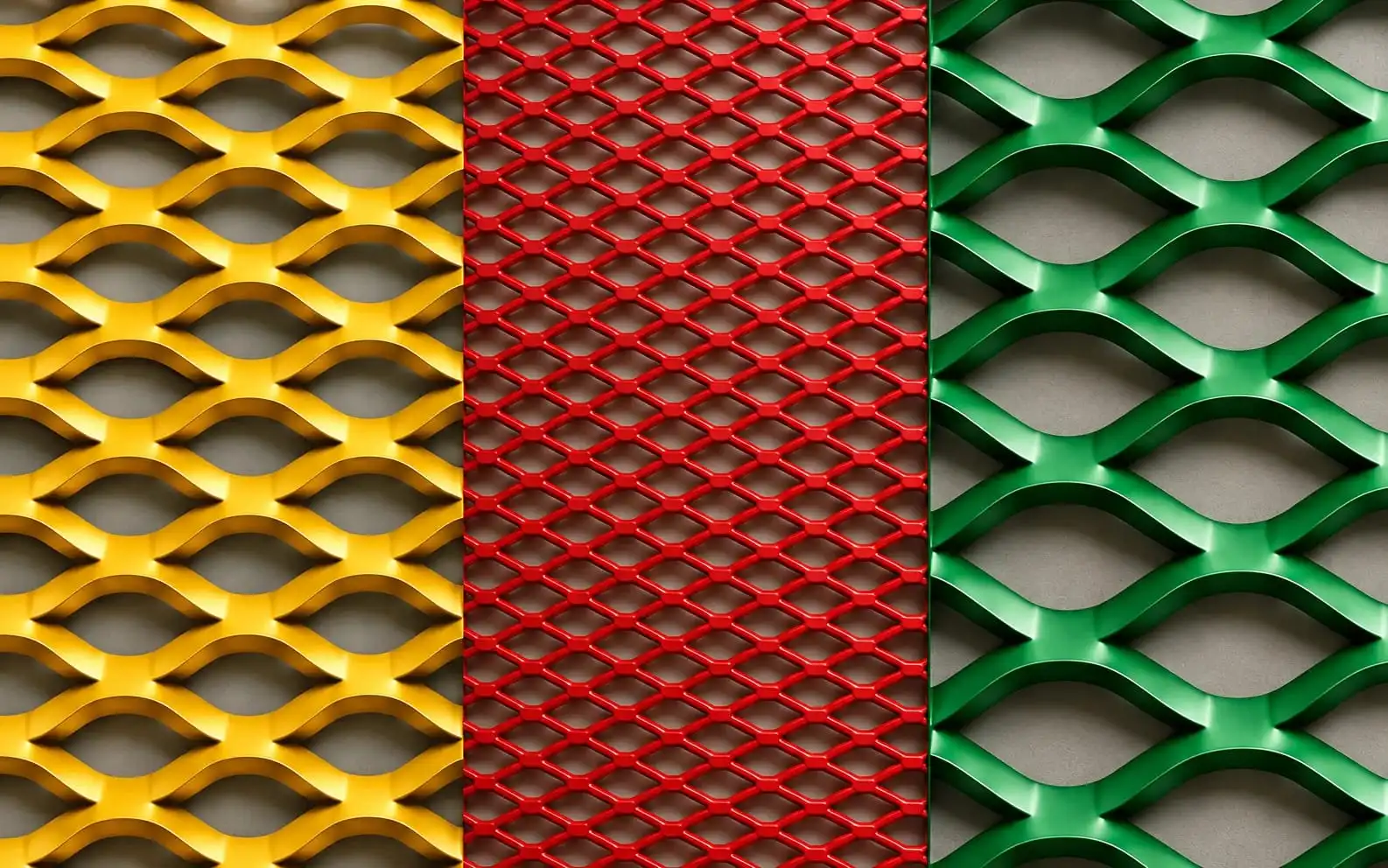

Perforated or mesh panels can form a secondary facade layer, providing solar control, partial privacy, concealment of technical areas and a distinctive architectural identity.
The proportion of transparent and opaque surfaces should be determined according to interior use, facade orientation, energy-performance expectations and architectural design.
Architectural appearance, technical performance, constructability, budget and project schedule must be evaluated together when selecting a curtain wall system. The choice between capped, structural silicone, semi-capped and panel glass systems should not be based solely on visual preference.
Eight Essential Criteria for Selecting a Curtain Wall System
1. Intended Use of the Building
Offices, hotels, hospitals, schools, retail stores, showrooms and factory administration buildings have different facade requirements. The number of users, interior layout, operating hours, daylight, privacy and ventilation expectations should be established before selecting the system.
2. Building Height and Structural System
The building height, floor-to-floor dimensions, slab edges, structural characteristics and facade module arrangement must be reviewed.
Facade profiles and connections should be determined by considering glass weight, panel weight, wind effects and other project-specific technical data.
3. Building Location and Facade Orientations
The project location, facade orientations and environmental conditions are important factors in curtain wall selection. For projects in Istanbul, wind, rain, solar exposure, coastal conditions and surrounding development should be evaluated together.
Using the same glass, cladding or solar-shading solution on every facade orientation may not produce the correct result.
4. Glass Selection and Energy Performance
Glass color or appearance alone is not a sufficient selection criterion. Light transmission, solar control, thermal insulation, safety characteristics, thickness and compatibility with the curtain wall system must be considered together.
The size of the glazed areas, opaque zones, thermally insulated profiles and sun breakers can affect interior comfort and the building’s overall energy demand.
5. Air and Water Tightness
Gaskets, joints, pressure plates, silicones, connection points, drainage channels and water discharge details are integral parts of the curtain wall system.
Using high-quality materials alone is not sufficient. The design, fabrication and installation details must be fully compatible with one another.
6. Fire Safety
Floor transitions, slab edges, insulation materials, opaque zones and fire-stopping details must be considered as a complete assembly.
Material and system decisions must comply with the building’s occupancy classification, height, approved design and applicable regulations.
7. Maintenance, Cleaning and Component Replacement
Facade glass cleaning, operation of opening vents, inspection of silicones and gaskets, maintenance access and the possible replacement of glass or panels should be considered during the design stage.
The selected facade system should not only be installable; it should also be cleanable, maintainable and repairable throughout its service life.
8. Budget and Installation Schedule
When evaluating the initial investment budget, material quality, production time, installation method, maintenance requirements and expected service life should be assessed together.
The lowest quotation may not always represent the most suitable solution. Quotations should be compared using the same technical specification, glass properties, profile system and scope of work.
Curtain Wall Design and Installation Process
A curtain wall project should generally proceed in the following order:
-
The building’s intended use and architectural expectations are established.
-
Architectural drawings, facade dimensions, floor heights and slab edges are reviewed.
-
The building location, facade orientations and technical performance requirements are evaluated.
-
Capped, structural silicone, semi-capped, panel glass and other facade alternatives are compared.
-
Glass, aluminum profiles, panels, insulation and connection details are determined.
-
Shop drawings and technical specifications are prepared.
-
The fabrication, delivery and installation schedule is developed.
-
Fabrication and installation stages are inspected according to the approved project details.
Making the final system decision after installation work has begun increases the risk of dimensional conflicts, material changes, cost increases and delays.
What Determines the Cost of a Curtain Wall?
Providing a single square-meter price without first reviewing the project does not produce a reliable cost estimate. The main factors affecting the unit price include:
-
Total facade area and building height
-
Selection of a capped, structural silicone, semi-capped or panel glass system
-
Aluminum profile series and profile quantities
-
Glass type, thickness, dimensions and technical specifications
-
Opaque glass, composite panels and other cladding areas
-
Number and specifications of opening vents
-
Additional systems such as perforated panels, mesh panels and sun breakers
-
Requirements for anchors and auxiliary steel structures
-
Site access, scaffolding, platform and lifting conditions
-
Transportation, fabrication and installation schedule
-
Project-specific details and performance requirements
For quotations to be compared accurately, excluded works, glass specifications, profile systems, auxiliary components, installation conditions and delivery periods must be clearly stated.
You can review the published example unit rates and system scopes on the curtain wall price lists page.
Optimal Mimarlık’s 5D – Five Correct Principles Approach
Optimal Mimarlık manages the curtain wall process according to its 5D – Five Correct Principles approach. The objective is to ensure coordination between project decisions, fabrication and on-site installation.
1. Correct Design
The building’s architecture, intended use, height, location, facade orientations and technical requirements are evaluated together. The curtain wall system is designed by considering appearance, performance, constructability and expected service life.
2. Correct Specification
Glass, aluminum profiles, insulation, fixing components, cladding materials and the scope of application are clearly defined. A correct specification helps ensure that quotations are compared under equivalent conditions.
3. Correct Fabrication
Dimensions, materials and production details that comply with the approved shop drawings are used. Fabrication inspections are important for reducing the risk of incompatibilities and installation errors.
4. Correct Installation
Facade components are installed in accordance with the approved drawings, system details and safety requirements. Installation quality directly affects facade appearance, durability, air tightness and water tightness.
5. Correct Timing
Design, approval, material procurement, fabrication, delivery and installation stages are planned according to a realistic project schedule. Curtain wall activities are coordinated with other construction works on site.
The 5D – Five Correct Principles approach combines Correct Design, Correct Specification, Correct Fabrication, Correct Installation and Correct Timing within a single coordinated curtain wall process.
Frequently Asked Questions About Curtain Walls
What are the main types of curtain wall systems?
The main options are capped curtain walls, structural silicone curtain walls, semi-capped curtain walls and panel glass curtain wall systems. Spider glass facades, roof skylights and systems combining glass with different cladding materials may also be evaluated as project-specific curtain wall solutions.
What is the difference between capped and structural silicone curtain walls?
In a capped system, aluminum caps are visible on the exterior of the glass joints. A structural silicone system provides a more continuous glass appearance. The selection should be based on architectural expectations, technical conditions, budget and installation details.
How is the correct curtain wall system selected for a project?
The building’s intended use, height, facade dimensions, location, facade orientations, glazing requirements, energy targets, architectural appearance, budget and project schedule must be evaluated together. The system decision should be based on this complete set of data.
What is the square-meter price of a curtain wall?
The square-meter price varies according to the system type, profile and glass specifications, building height, facade area, opening vents, auxiliary components and installation conditions. A single price provided without reviewing the project may not reflect the actual application cost.
Can a glass curtain wall be energy efficient?
A glass curtain wall can contribute to the building’s energy performance when suitable glass specifications, thermally insulated profiles, correctly detailed opaque zones, air and water tightness and solar control are provided together.
What causes water leakage in a curtain wall?
Inappropriate junction details, incorrect silicone or gasket installation, insufficient drainage, poor installation and lack of maintenance may cause water leakage.
Applying silicone only to the exterior surface without investigating the source of the problem may not provide a permanent solution.
Can perforated panels be used with a glass curtain wall?
Yes. Perforated panels can be used as a secondary layer in front of the glass curtain wall or across selected facade zones.
The perforation ratio, panel dimensions, supporting system, solar-control requirements and maintenance access must be determined specifically for the project.
What should be considered when selecting a curtain wall system in Istanbul?
The district in which the building is located, building height, facade orientations, wind and rain exposure, proximity to the coast, surrounding development, site access and installation schedule should be evaluated together.
Does Optimal Mimarlık evaluate projects outside Istanbul?
Optimal Mimarlık’s primary operational center is Istanbul. Projects outside Istanbul may be evaluated separately according to their scope, location, installation conditions and planned schedule.
Request a Curtain Wall Assessment for Your Project
If you are selecting a curtain wall system for an office, commercial building, hotel, retail store, showroom, factory administration building or another project planned in Istanbul, the architectural and technical requirements should be evaluated together before a final decision is made.
For an initial assessment, you can provide the building location, intended use, approximate facade area, building height, available drawings or photographs and target installation schedule.
To evaluate capped, structural silicone, semi-capped, panel glass and spider glass curtain wall systems together with aluminum composite panels, Sinterflex, Neolith, ceramic, compact laminate, perforated panel and mesh panel facade solutions for your project, please contact Optimal Mimarlık.
