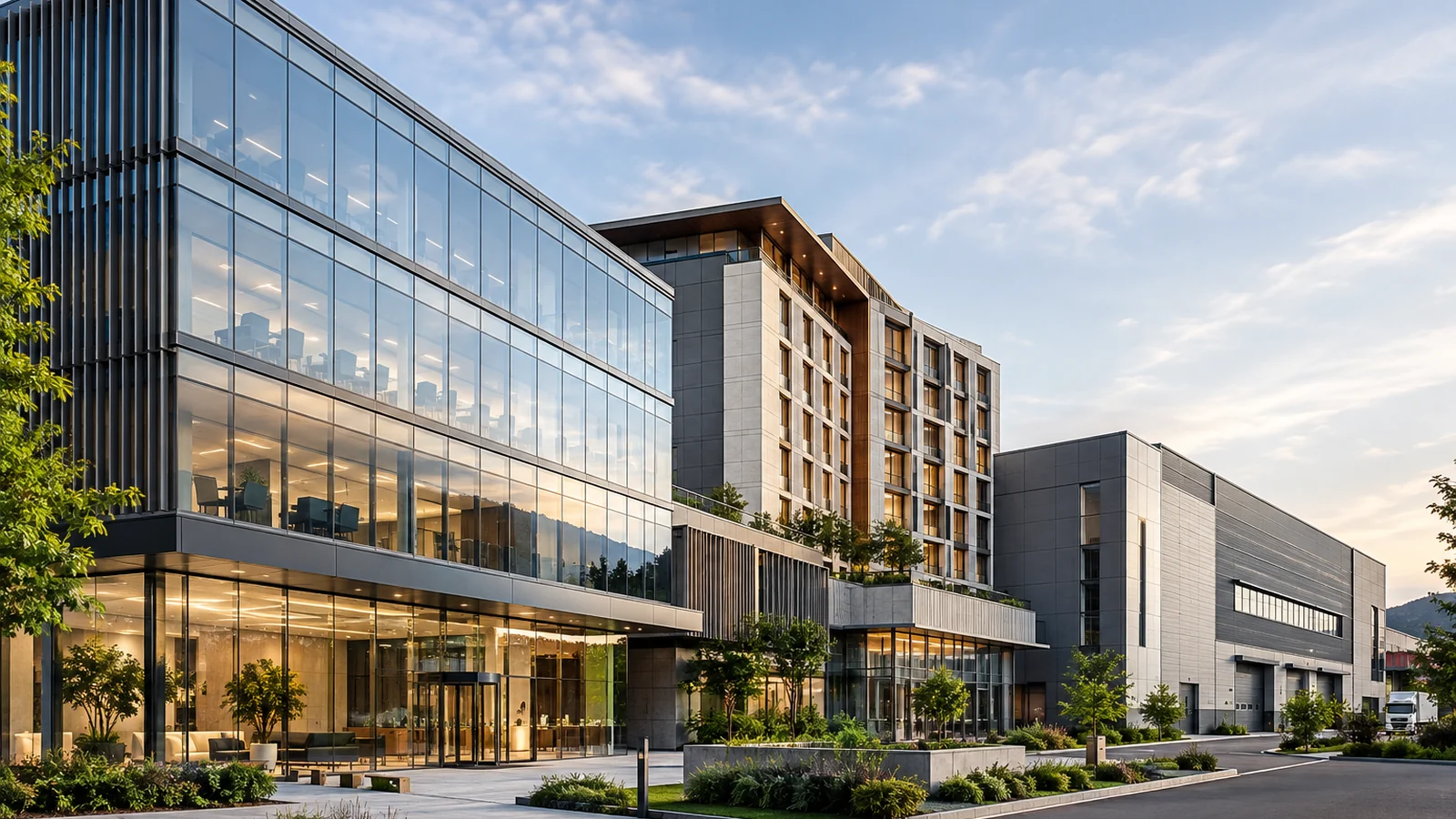

Curtain Wall and Interior Fit-Out Solutions for Offices, Plazas, Hotels and Factories

In office buildings, plazas, hotels and factories, architectural quality is not determined solely by the appearance of the building or by the materials used in the interior. The building envelope, aluminium joinery, glazing, façade cladding and interior fit-out applications operate as interconnected systems. A successful project is achieved when these components are designed together by considering architectural intent, building use, structural requirements, energy performance, building acoustics, fire safety, environmental exposure, maintenance requirements and expected service life.

Particularly in commercial and industrial buildings, the façade forms the primary building envelope separating the interior from external conditions. Long-term façade performance under wind, rain, solar radiation, temperature variations, humidity, air pollution and structural movement depends not only on the quality of individual materials, but also on correct system selection, structural calculations, proper detailing and compatibility between all façade components.

Optimal Mimarlık approaches Curtain Wall Systems, aluminium doors and windows, façade cladding and complementary interior fit-out applications as coordinated parts of the architectural and technical requirements of each project. The company's current English curtain wall service content similarly identifies wind load, drainage, thermal performance and maintenance access among the factors that must be evaluated during system selection. Optimal Mimarlık

A Long-Lasting Façade Begins with the Correct System and Material Selection

Using high-quality glass, aluminium profiles or durable façade panels alone does not create a long-lasting façade. A curtain wall is a complete system consisting of aluminium profiles, glass, panels, anchors, fasteners, gaskets, seals, structural silicones, substructures, insulation materials, membranes and other complementary components.

Each component has different physical properties, movement characteristics and expected service conditions. Materials used in the façade must therefore be suitable for exterior exposure and compatible with one another.

For a long-lasting façade system, the following criteria must be resolved during the design stage:

• building height and geometry,
• wind loads,
• façade module dimensions,
• glass and panel dimensions,
• structural profile sections,
• anchoring and connection points,
• structural calculations,
• seismic movement and inter-storey drift,
• façade expansion joints,
• thermal expansion and contraction,
• air and water tightness,
• drainage and water evacuation paths,
• thermal insulation and energy performance,
• acoustic performance,
• fire safety,
• corrosion risk,
• exterior durability of materials,
• cleaning and maintenance access,
• replacement of glass, panels and other components when required.

The objective of long-lasting façade design is therefore not simply to create a façade that looks good when completed. The objective is to create a building envelope that maintains its technical and architectural performance over time, manages water correctly, accommodates building movement, can be safely cleaned and maintained, and allows individual components to be replaced when required.

For further information on curtain wall system selection, visit Curtain Wall Systems.

The Importance of Structural Calculations and Engineering in Curtain Wall Design

A curtain wall is not simply an architectural cladding layer. The façade system transfers its self-weight and environmental loads to the main building structure through anchors and connection points.

For this reason, profiles and connections should not be selected solely according to catalogue values or details previously used on another project.

Façade structural studies must take into account the project location, building height, façade geometry, module dimensions, glass and panel weights, wind effects, anchoring points and characteristics of the main structural system.

Structural calculations are used to determine and verify:

• vertical and horizontal framing sections,
• required steel reinforcement,
• profile moments of inertia,
• permissible deflections,
• glass thicknesses and dimensions,
• panel dimensions,
• anchor types and spacing,
• fasteners,
• substructure sections,
• brackets and connection points.

Wind effects become particularly important in high-rise buildings and façades with large glass modules. Insufficient profile or connection capacity leads to excessive deformation, stress on glazing and panels, failure of gaskets and sealants, deterioration of air and water tightness and damage to façade components.

For this reason, architectural façade design and façade structural engineering must progress together.

Optimal Mimarlık's project references also include applications where structural calculations and thermal transmittance requirements were incorporated into the façade work. Optimal Mimarlık

A Curtain Wall Behaves Differently from the Reinforced Concrete Structure

The curtain wall is not part of the primary reinforced concrete or structural steel load-bearing system of the building. It transfers its own weight and environmental loads to the primary structure through anchors and connection components.

This distinction is fundamental to façade engineering.

The primary structural system carries the principal building loads through columns, beams, shear walls, slabs or structural steel members. The curtain wall functions as a secondary structural system attached to that primary structure.

However, because the façade is connected to the building structure, it is not completely independent of structural movement.

Under wind, earthquakes, temperature changes, inter-storey drift and other structural deformation, the primary structure moves. Façade connections, joints and interfaces must be designed to accommodate the movements defined for the project.

The curtain wall should not simply be rigidly locked to the reinforced concrete structure. The system must accommodate the calculated movements in a controlled manner without transferring unacceptable stresses to glass, panels, profiles or connections.

Seismic Movement and Inter-Storey Drift in Curtain Wall Systems

During an earthquake, reinforced concrete or structural steel buildings move laterally and relative displacement occurs between floors.

If the curtain wall cannot accommodate these movements, glazing, profiles, connections, joints and cladding elements are subjected to excessive stress.

The façade design must therefore consider the relative movement expected between storeys during seismic action.

The curtain wall system must provide appropriate movement capacity at:

• floor-to-floor interfaces,
• anchoring and connection points,
• glass-to-frame clearances,
• panel joints,
• profile connections,
• vertical movement joints,
• horizontal movement joints.

The objective is not to make the façade completely independent from the primary structure. The objective is to prevent calculated movement of the primary structure from creating uncontrolled stresses within the façade system.

Why Are Façade Expansion Joints and Thermal Movement Details Necessary?

Aluminium, glass, steel, aluminium composite panels, fibre cement and other façade materials do not expand and contract by the same amount as temperatures change.

Particularly on long façades, thermal expansion and contraction create movement within profiles, panels, joints and connections. If this movement is not considered during design, stresses develop within the façade components.

For this reason, façade expansion joints and movement joints must be provided at the required locations.

Structural expansion joints within the building must also be continued through the façade. Two building sections designed to move independently should not be rigidly tied together by the façade system.

Correctly detailed façade expansion joints accommodate thermal movement, structural movement and installation tolerances in a controlled manner.

Designing a Façade for Exterior Atmospheric Conditions

A façade is continuously exposed to rain, wind, solar radiation, temperature variations, humidity, air pollution and local environmental conditions.

Exterior materials must therefore be evaluated not only according to appearance but also according to their weather resistance and behaviour within the complete façade assembly.

The fact that a panel is suitable for exterior use does not automatically make the entire façade durable. The supporting substructure, anchors, fasteners, joints, surface finishes and interfaces must also be suitable for the same environmental conditions.

Galvanic corrosion must be considered where dissimilar metals come into contact. The appropriate paint or anodised finish must be selected for aluminium surfaces, corrosion protection must be provided for steel substructures, exterior-grade fasteners must be used and sealants must have suitable UV and movement resistance.

The concealed components of the façade must be as carefully considered as the visible materials.

This system-based approach is particularly important in applications such as Fiber Cement Facade Cladding Systems, aluminium composite panels, perforated façades and mesh cladding.

Why Are Drainage and Water Management Details Critical?

One of the most important technical requirements of a durable façade is controlled water management.

Façade design cannot rely solely on preventing water from reaching the interior. Water that enters permitted zones of the system must have a defined path through which it can be safely drained back to the exterior.

In curtain wall systems, profile channels, drainage cavities, weep holes, gaskets and pressure-equalisation principles form part of the system's water-management strategy. Optimal Mimarlık's current English curtain wall service content also identifies drainage paths as part of shop drawing and detail coordination. Optimal Mimarlık

In windows and doors, frames, opening vents, gaskets and drainage channels work together. In panel façades, parapets, reveals, sills, corners, roof edges, base details and window interfaces are critical water-management locations.

Uncontrolled water remaining within the façade causes moisture accumulation, corrosion, surface deterioration, reduced insulation performance and water penetration into the interior.

A fundamental principle of correct façade detailing is therefore to receive water, direct it and discharge it safely away from the building.

The Role of Curtain Walls in Energy Efficiency

The façade directly influences the energy performance of office buildings, plazas, hotels and factory administration buildings.

In buildings with extensive glazed surfaces, using thermally broken aluminium profiles alone is not sufficient. Glass, aluminium framing, opaque spandrel zones, insulation, solar control, façade orientation and junction details must be considered as one building-envelope system.

Depending on project requirements, the façade can incorporate:

• thermally broken aluminium systems,
• Low-E coated glass,
• solar-control glazing,
• appropriate insulating glass units,
• thermal insulation within opaque and spandrel areas,
• continuity of insulation,
• reduced thermal bridging,
• external solar shading,
• different glazing specifications according to façade orientation.

On façades with high solar exposure, the solar-control characteristics of the glass directly influence internal heat gains and cooling demand. In colder conditions, thermal transmittance through glazing, framing, spandrels and interfaces affects building heat loss.

Energy-efficient façade design therefore does not mean applying the same glazing and façade specification to every elevation. It means designing the building envelope according to orientation, building use and required energy performance.

Building Acoustics Are Part of Façade Design

In locations affected by road traffic, airports, railways, industrial activity or urban noise, the external façade has a major role in determining indoor acoustic comfort.

A hotel room, meeting room, executive office or open-plan office does not have the same acoustic requirements as an industrial production area.

Acoustic façade design cannot be reduced to simply using thicker glass. Glass composition, laminated glass, different pane thicknesses, cavity dimensions, framing system, opening vents, gaskets, joints and installation quality all influence acoustic performance.

Acoustic continuity must also be maintained inside the building. Poorly detailed interfaces between the façade and interior partitions, doors, suspended ceiling voids and service penetrations create sound transmission paths.

For this reason, particularly in hotel, office and plaza projects, façade acoustics and interior acoustics must be designed as coordinated parts of the same building.

For internal commercial areas, Interior Partition Systems can be designed according to glass configuration, door systems, privacy requirements and acoustic performance. Optimal Mimarlık

Façade Cleaning and Maintenance Access Must Be Designed from the Beginning

A long-lasting façade must also be cleanable and maintainable.

Large glazed areas, sun breakers, secondary screens, deep reveals, canopies and projecting architectural elements make façade cleaning more difficult, particularly on high-rise office buildings, plazas and hotels.

Façade cleaning should therefore not be treated as a secondary issue after construction has been completed.

Depending on building height and façade geometry, the design must consider:

• safe access through opening vents where appropriate,
• façade access and maintenance systems,
• suitable anchorage and access points,
• mobile elevated platform access,
• roof access requirements,
• accessibility of recesses and projections,
• cleaning access around sun breakers,
• procedures for replacing glass and façade panels.

Material selection must also consider how surfaces will be cleaned and maintained throughout their service life.

Glass, powder-coated aluminium, anodised aluminium, aluminium composite panels, fibre cement, ceramic and other façade materials require different cleaning and maintenance methods.

A well-designed façade is not only installable. It can be safely cleaned, inspected and maintained, and allows glass, panels, gaskets and other components to be replaced when required.

Façade Service Life Must Be Considered Together with Initial Investment Cost

A façade investment should not be evaluated solely according to initial construction cost.

A system with a lower initial price can generate greater long-term costs through frequent maintenance, premature surface deterioration, water penetration, replacement of sealants and gaskets, corrosion, difficult cleaning or poor maintenance access.

Façade systems and materials should therefore be compared by considering:

initial investment + energy performance + maintenance + cleaning + repairs + component replacement + expected service life

as part of the overall assessment.

A long-life façade strategy does not mean claiming that the façade will never require maintenance. It means designing a façade in which maintenance requirements are anticipated, inspection points are accessible and necessary maintenance can be carried out properly.

Curtain Wall and Interior Fit-Out Solutions for Office and Plaza Projects

In office and plaza buildings, the external façade is one of the principal architectural elements defining the corporate identity of the building. Internally, workspaces, meeting rooms, executive offices, common areas and technical spaces have different performance requirements.

Capped, Semi-Capped and Silicone Curtain Wall Systems, aluminium joinery and opaque façade cladding can be combined according to the project. Optimal Mimarlık's existing system information identifies offices among the common applications of these systems. Optimal Mimarlık

Inside the building, glass partitions, plasterboard partitions, acoustic solutions, suspended ceilings, raised floors, ceramic finishes and decorative cladding should be coordinated with the façade grid.

This coordination ensures that vertical façade axes align correctly with internal partitions, suspended ceiling levels meet window heads correctly and slab-edge façade details integrate properly with interior finishes.

Coordinating façade and fit-out works prevents different trades from having to modify one another's work after installation and allows critical interfaces to be resolved before construction begins.

Façade, Energy and Acoustic Performance in Hotel Projects

In hotel projects, the façade directly affects architectural identity, energy consumption and occupant comfort.

For guest-room façades, external noise control, solar heat gains, glass selection, aluminium joinery performance and thermal insulation of opaque areas must be considered together.

Large glazed surfaces may be used in lobbies, restaurants and common areas, while guest-room areas can require different ratios of transparent and opaque surfaces.

Modern hotel façades can combine curtain wall glazing with Fiber Cement Facade Cladding Systems, porcelain-based façade panels, ceramic systems and metal cladding.

Where a classical or neo-classical architectural identity is required, window surrounds, horizontal bands, cornices, pilasters and other decorative elements can be coordinated with aluminium windows and glazed surfaces.

These solutions can be explored through Neoclassical Decorative Facade Systems.

Within the hotel, guest-room and corridor partitions, ceilings, shaft enclosures, doors and service penetrations must also be designed according to the required acoustic and fire-performance strategy.

Façade and Interior Fit-Out Solutions for Factories and Industrial Buildings

For factories and industrial buildings, façade system selection must consider durability, construction programme, maintenance requirements, energy performance and fire safety in addition to initial investment cost.

Production areas, warehouses, administration offices, entrance zones and showrooms within the same factory do not have identical architectural or technical requirements. Different parts of the building should therefore use systems appropriate to their individual functions rather than applying one façade solution everywhere.

Curtain wall systems and aluminium joinery can be used on administration areas, while large opaque elevations can incorporate Fiber Cement Facade Cladding Systems, aluminium composite panels or other metal façade systems.

Perforated, mesh or corrugated metal systems can also be incorporated where the architectural concept requires a stronger industrial identity.

Factory administration areas should coordinate external façade grids with office partitions, ceilings, doors, floors and other interior fit-out works.

Optimal Mimarlık's Miletiket Factory – Semi-Capped Curtain Wall project is one example in which glass façade modules, silicone joints, aluminium caps, drainage arrangements and building interfaces were coordinated as a complete façade system. Optimal Mimarlık

Why Does Coordinating the Façade and Interior Fit-Out Provide an Advantage?

Managing façade and interior fit-out applications within the same project logic allows interfaces between disciplines to be resolved before installation.

The relationship between the façade grid and internal partitions, window head and suspended ceiling, door threshold and floor finish, façade cladding and sill, and slab-edge façade detail and interior finish can all be defined during design.

This approach reduces conflicts between architectural, façade, structural, mechanical, electrical and interior fit-out disciplines.

The same coordination is important for the construction programme. Correct sequencing of façade, joinery, partitions, ceilings, floors and finishes prevents unnecessary rework and site modifications.

New Buildings and Façade Renovation Projects Require Different Approaches

In new buildings, façade grids, structural systems, interior partitions, services and maintenance systems can be coordinated from the beginning of the design process.

In existing buildings, the process begins with a technical assessment of the existing façade.

Façade framing, aluminium profiles, glass, panels, anchors, connections, gaskets, structural silicone, drainage paths, insulation, corrosion, movement joints and interior interfaces must be inspected. This assessment determines which components can remain, which require repair and which must be replaced.

A façade renovation does not automatically require the complete removal of the existing façade. Retaining components that continue to meet the required technical performance and replacing defective elements can reduce unnecessary material use and project costs when the existing system permits it.

Fire Safety Must Be Considered Across the Façade and Interior Fit-Out

Fire performance cannot be assessed solely from the reaction-to-fire classification of a façade panel or insulation board.

Façade cladding, insulation, cavities, slab-edge interfaces, fire and smoke barriers, window perimeters, interior partitions, shafts and service penetrations must be considered as interacting components.

The fact that an individual material has an A1 or A2 reaction-to-fire classification does not automatically mean that the complete façade or partition assembly achieves the same performance. Product classifications and complete system performance must be verified separately.

This is particularly important in hotels, plazas, factories and other intensively occupied commercial buildings.

How Is the Correct Curtain Wall System Selected?

There is no single curtain wall system that is ideal for every building.

The appropriate solution is determined by considering:

building type + building height + façade geometry + primary structure + wind load + seismic movement + façade orientation + energy performance + acoustic performance + water management + fire safety + cleaning and maintenance + architectural requirements + budget

as a complete set of project criteria.

For this reason, two façade proposals should not be compared solely according to their price per square metre.

A façade with a lower initial price can generate higher long-term costs if it uses inadequate materials, has poor energy performance, requires frequent maintenance, develops water penetration or surface deterioration, or is difficult to access for cleaning and repairs.

The correct façade system establishes a balance between architectural appearance, engineering, technical performance, constructability and life-cycle cost.

What Information Should Be Prepared at the Beginning of a Project?

For an accurate curtain wall and interior fit-out assessment, the following information should be prepared where available:

• architectural plans, sections and elevations,
• façade details,
• approximate quantities,
• project location and building use,
• building height and number of floors,
• primary structural system information,
• façade module dimensions,
• preferred systems and materials,
• energy-performance requirements,
• acoustic-performance requirements,
• fire-safety requirements,
• current photographs for existing buildings,
• components to be retained during renovation,
• proposed cleaning and maintenance strategy,
• required construction programme.

This information allows structural calculations, system alternatives, technical details, material selections and quotation scope to be developed correctly.

The Objective Is to Create the Correct Combination of Systems

Modern commercial and industrial façades increasingly consist of several systems working together as one building envelope.

A plaza can combine a structural silicone curtain wall with A2 aluminium composite panels. A factory can combine fibre cement or metal cladding with aluminium windows. A hotel can combine decorative façade elements with glass and aluminium systems.

Glass partitions, suspended ceilings, acoustic systems, flooring and internal wall finishes are also not completely independent from the external building envelope.

The objective is therefore not to use the greatest possible number of products. It is to use the correct system, the correct material and the correct detail in the correct part of the building.

A properly designed curtain wall is:

structurally calculated, capable of accommodating seismic and building movement, provided with appropriate façade expansion joints, resistant to exterior atmospheric conditions, designed for controlled drainage, capable of meeting energy and acoustic performance requirements, developed with fire safety in mind, safely cleanable and maintainable, and designed for long-term service.

You can review completed applications across different building types in the References section.

Curtain Wall and Interior Fit-Out Projects by Optimal Mimarlık

Optimal Mimarlık develops project-specific curtain wall and complementary architectural solutions for offices, plazas, hotels, factories and commercial buildings.

The process includes system selection, evaluation of structural requirements, technical detailing, material selection, shop drawings, fabrication coordination, site installation and quality control.

The objective is not simply to enclose the building or create an architectural appearance. It is to create a technically resolved building envelope that is suitable for the building's operating conditions and maintains its required performance over the long term.

For this reason, new-build and renovation projects consider structural safety, wind loads, seismic movement and inter-storey drift, façade expansion joints, exterior weather resistance, controlled water drainage, energy efficiency, building acoustics, fire safety, cleanability, maintainability and material service life together.

For technical system information, visit Curtain Wall Systems. For project planning and application services, visit Curtain Wall Services. You can also review References or Contact Optimal Mimarlık for project evaluation.

Author: Mehmet Beşe POLATKAN / Architect – YTU

Copyright and Usage Notice

This content belongs to Optimal Mimarlık. All rights are reserved under applicable copyright legislation. It may not be copied, reproduced, modified or republished on other websites or media without permission. When a permitted quotation is made, www.optimalmimarlik.com must be cited as the source.
